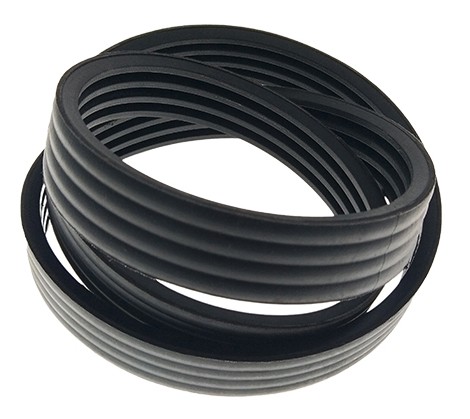

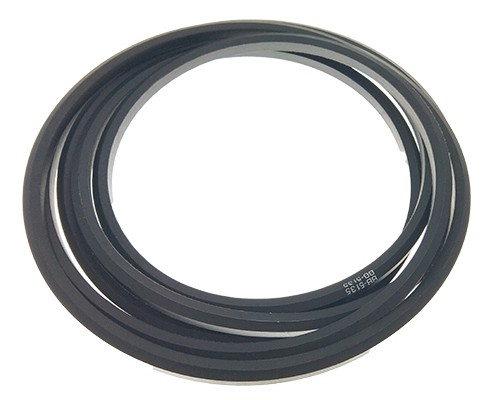

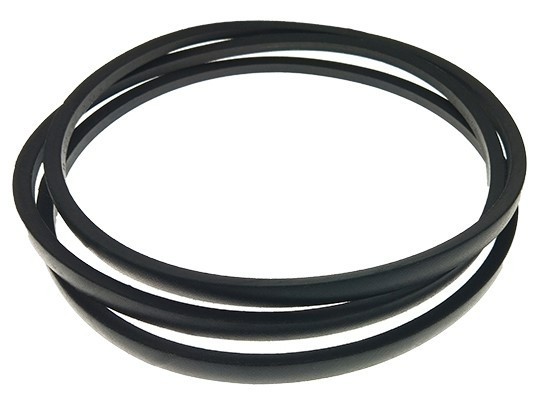

Rubber V-Belts
CONSTRUCTION:
cloth(cotton canvas/polyester cotton canvas)+top glue(common rubber goods chloroprene rubber)+tensile body (polyester thread/aramid wire rope) + base glue (common glue or chloroprene rubber).
FEATURE:
low price, smooth transmission, low noise, excellent cushioning and vibration absorption, simple structure, easy installation and maintenance.
APPLICATION:
Suitable for mechanical transmission in all industrial fields.
Model | Top width（mm） | Belt height（mm） | Angle（β°） |
Y | 6 | 4 | 40 |
K | 8 | 6 | 40 |
Z | 10 | 6 | 40 |
A | 13 | 8 | 40 |
AB | 15 | 9 | 40 |
B | 17 | 11 | 40 |
BC | 20 | 12.5 | 40 |
C | 22 | 14 | 40 |
CD | 25 | 16 | 40 |
D | 32 | 19 | 40 |
E | 38 | 23 | 40 |
F | 50 | 30 | 40 |
2L | 6.3 | 3.2 | 40 |
3L | 10 | 6 | 40 |
4L | 13 | 8 | 40 |
5L | 17 | 11 | 40 |
SPZ | 10 | 8 | 38 |
SPA | 13 | 10 | 38 |
SPB | 17 | 14 | 38 |
SPC | 22 | 18 | 38 |
3V(9N) | 9.5 | 8 | 38 |
5V(15N) | 16 | 13.5 | 38 |
8V(25N) | 25.5 | 23 | 38 |
AA | 13 | 10 | 38 |
BB | 17 | 13 | 38 |
CC | 22 | 17 | 38 |
AJ | 13.6 | 10 | 38 |
BJ | 17 | 13 | 38 |
CJ | 22.4 | 16 | 38 |
DJ | 32.8 | 21.5 | 38 |
R3V | 9.7 | 9.7 | |
R5V | 15.7 | 15.7 | |
R8V | 25.4 | 25.4 | |
RSPZ | 10.5 | 10 | |
RSPA | 13.6 | 12.3 | |
RSPB | 17 | 16.5 | |
RSPC | 22 | 21 |
