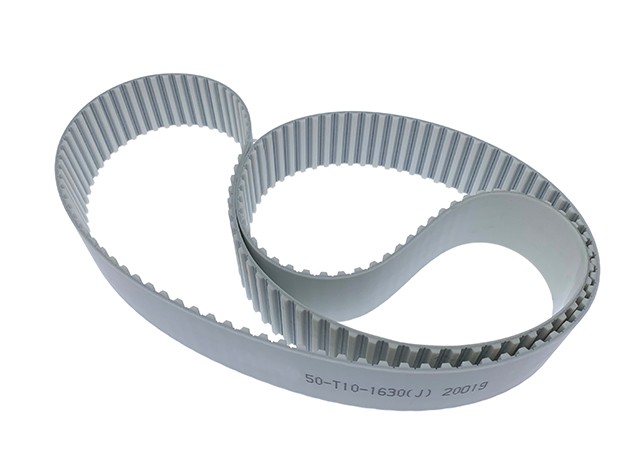

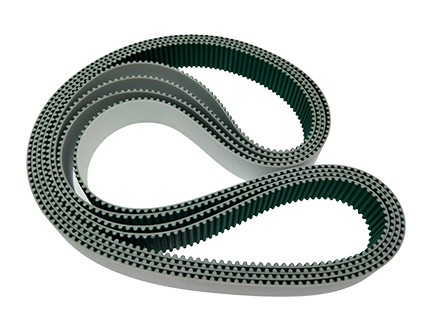

PU Jointed Belts

CONSTRUCTION:
Thermoplastic polyurethane + Galvanized steel wire rope
FEATURE:
1.Long service life, with high mild toughness, especially suitable for machines that are turned on for a long time;
2.The elongation rate is low, and the rubber timing belt of polyester hard wire is very low in elongation efficiency compared with ordinary flexible wire belt;
3.High meshing degree, through precision machining, the timing belt and pulley mesh and drive accurately.
APPLICATION:
Glass machinery industry glass, glass machinery edging machine glass, glass machinery cutting table, computer flat knitting machine, flying needle machinery industry, manipulator industry, spraying machinery industry, injection, plastic manipulator, automation industry.

EMAIL

 Model

Step (mm)

Tooth (mm)

Thickness (mm)

XL

5.08

1.27

2.3

L

9.525

1.91

3.6

H

12.7

2.29

4.3

3M

3

1.17

2.4

5M

5

2.06

3.8

8M

8

3.36

6

T5

5

1.2

2.2

T10

10

2.5

4.5

AT5

5

1.2

2.7

AT10

10

2.5

5
