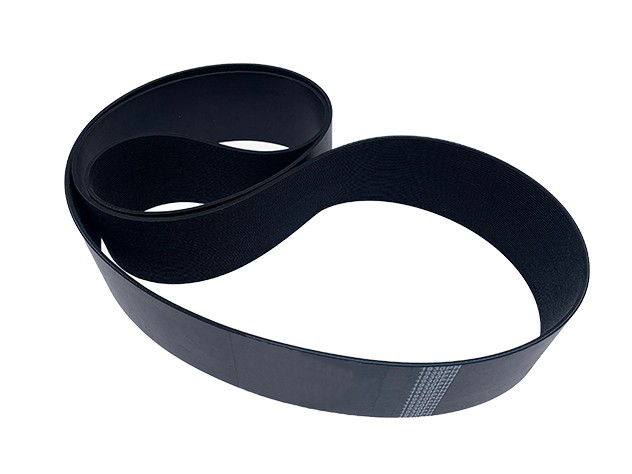

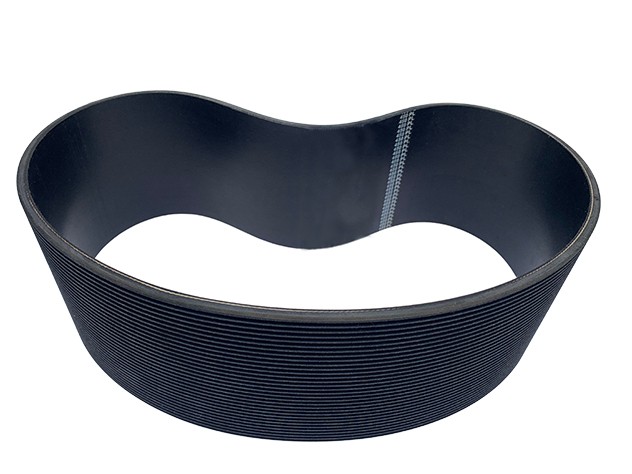

CONSTRUCTION:
top rubber(CR HNBR) + tensile member(Glass Fibre) + teeth Fabric(Elastic Fabric)
FEATURE:
It has good heat resistance and oil resistance, aging resistance, ozone resistance, large transmission power, suitable for small pulley diameter transmission, and also suitable for high-speed transmission, belt speed can reach 40m/s; low vibration, less heat, and stable operation.
APPLICATION:
It is suitable for transmission with small sheaves, compact design, and certain program vibration. Such as sports equipment, power tools, medical equipment, automobiles, power equipment, small air compressors, machine tools, and agricultural equipment.
Model | Wedge distance(mm) | Angle(β°) | Thickness(mm) |
PH | 1.6 | 40 | 3 |
PJ | 2.34 | 40 | 4 |
PK | 3.56 | 40 | 4-6 |
PL | 4.7 | 40 | 10 |
PM | 9.4 | 40 | 17 |
