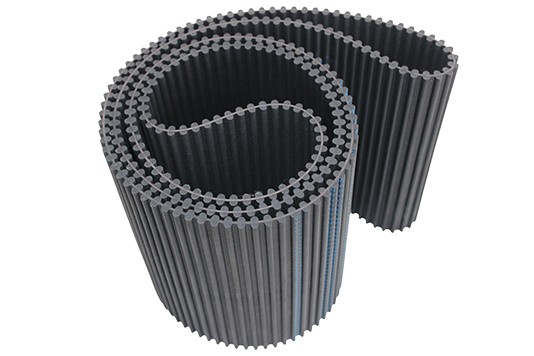

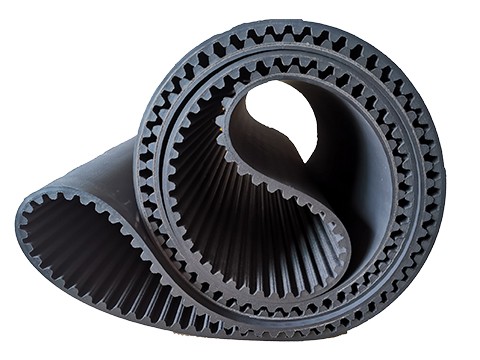

Rubber Timing Belts
CONSTRUCTION:
cloth(cotton canvas/polyester cotton canvas)+top glue(common rubbergoods chloroprene rubber)+tensile body (polyester thread/aramid wirerope) + base glue (common glue or chloroprene rubber)
FEATURE:
low price，smooth transmission，low noise，excellent cushioning andvibration absorption，simple structure，easy installation and maintenance.
APPLICATION:
Suitable for mechanical transmission in all industrial fields.
Model | Step (mm) | Tooth (mm) | Thickness (mm) | Angle（β°） | |||||
MXL | 2.032 | 0.51 | 1.14 | 40 | |||||
XXL | 3.175 | 0.76 | 1.52 | 50 | |||||
XL | 5.08 | 1.27 | 2.3 | 50 | |||||
L | 9.525 | 1.91 | 3.6 | 40 | |||||
H | 12.7 | 2.29 | 4.3 | 40 | |||||
XH | 22.225 | 6.35 | 11.2 | 40 | |||||
XXH | 31.75 | 9.53 | 15.7 | 40 | |||||
T2.5 | 2.5 | 0.7 | 1.3 | 40 | |||||
T5 | 5 | 1.2 | 2.2 | 40 | |||||
T10 | 10 | 2.5 | 4.5 | 40 | |||||
T20 | 20 | 5 | 8 | 40 | |||||
AT5 | 5 | 1.2 | 2.7 | 50 | |||||
AT10 | 10 | 2.5 | 5 | 50 | |||||
AT20 | 20 | 5 | 8 | 50 | |||||
Model | Step (mm) | Tooth (mm) | Thickness (mm) | ||||||
HTD | 2M | 2 | 0.75 | 1.36 | |||||
3M | 3 | 1.17 | 2.4 | ||||||
5M | 5 | 2.06 | 3.8 | ||||||
8M | 8 | 3.36 | 6 | ||||||
14M | 14 | 6.02 | 10 | ||||||
20M | 20 | 8.4 | 13.2 | ||||||
STD/STS | S2M | 2 | 0.76 | 1.36 | |||||
S3M | 3 | 1.14 | 2.2 | ||||||
S4.5M | 4.5 | 1.71 | 2.81 | ||||||
S5M | 5 | 1.91 | 3.4 | ||||||
S8M | 8 | 3.05 | 5.3 | ||||||
S14M | 14 | 5.3 | 10.2 | ||||||
RPP | 2M | 2 | 0.76 | 1.36 | |||||
3M | 3 | 1.15 | 1.9 | ||||||
5M | 5 | 1.95 | 3.5 | ||||||
8M | 8 | 3.2 | 5.5 | ||||||
14M | 14 | 6 | 10 | ||||||
